SLP74LVC2G14
DUAL INVERTING SCHMITT TRIGGER

    The SLP74LVC2G14 is a dual inverting buffer with Schmitt-trigger input. The Schmitt-trigger makes the input tolerant of slower pulse edge. The device is designed for 1.65V to 5.5V Vcc operation and performs the function Y=A(—).

    The device is specially designed for protect performance during power down using Power-Down-Protect circuit. The Power-Down-Protect circuitry disables the output drivers, preventing the damaging outside current back through the device when it is powered down.


Main feature

  • 5V tolerant inputs for interlacing with 5V logic

  • Supports from 1.65V to 5.5V operation

  • CMOS low power consumption

  • Direct interface with TTL levels

  • ±24mA output driver (Vcc=3.0V)

  • ESD protection:

  • HBM exceeds 2000V

  • CDM exceeds 1000V

  • Latch up performance exceeds 250mA

  • Specified from -40°C to +85°C and from -40°C to +125°C


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SLP74LVC2G14KETR SOT-363-6L SE Halogen free Tape & Reel
SLP74LVC2G14KCTR SOT-23-6L 2G14 Halogen free Tape & Reel
Block Diagram

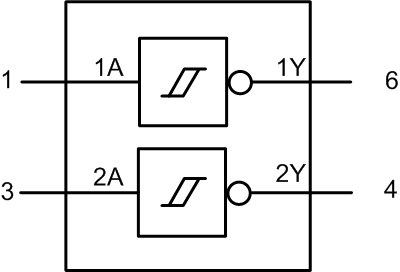

                 Fig.1 Function diagram

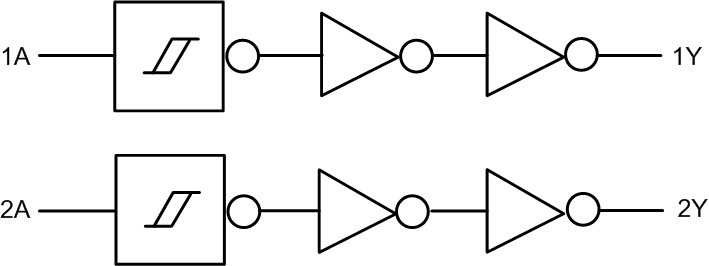

                      Fig.2 Logic diagram

Documents
title Types of Size (KB) date Download the latest English version
SLP74LVC2G14 0 1970-01-01 SLP74LVC2G14 Brief Datasheet
